Cuplock scaffolding, also known as the "Cup-Lock" system, is a multi-purpose steel scaffold system characterized by its unique circular node point. This innovative locking mechanism allows up to four horizontals to be connected to a single standard in one action—making it one of the fastest and most stable systems in the global market. As a premier choice for heavy-duty construction and civil engineering, it stands out for its exceptional structural rigidity, high load-bearing capacity, and bolt-free simplicity. By streamlining the erection process, it significantly minimizes downtime and labor expenses, ensuring your project stays on track and under budget.
Xingjia Scaffold provides premium HDG Cuplock products manufactured to the highest global benchmarks. Our systems are rigorously tested to ensure full compliance with international safety and quality standards.

  • BS EN 12811 (Scaffolds - Performance requirements)

  • BS EN 12810 (Facade scaffolds made of prefabricated components)


📋 Product Specifications
CategoryDetails
Product NameCuplock Scaffold (Hot-Dip Galvanized)
MaterialHigh-strength Steel (Q355 / S355) — Engineered for maximum load capacity
Surface FinishHot-Dip Galvanized (HDG) — Superior 360° corrosion protection
CertificationsBS EN 12810/12811 & ISO 9001 (International Safety Compliant)
Core Components & Sizes
- Standard (Vertical)3.0m / 2.5m / 2.0m / 1.5m / 1.0m / 0.5m
- Ledger (Horizontal)2.5m / 1.8m / 1.3m / 1.2m / 0.9m / 0.6m
- Diagonal Brace2.5m x 2.0m / 1.8m x 2.0m / 1.2m x 2.0m
- Steel Plank2.5m / 1.8m / 1.3m / 0.9m / 0.6m
- Intermediate Transom2.5m / 1.8m / 1.3m / 1.2m / 0.9m / 0.6m
Product Advantages
HDG Cuplock scaffolding is the industry benchmark for durability and speed. It is specifically designed to thrive in demanding environments, from offshore oil rigs to massive infrastructure projects. Below are its core advantages:

  • Unique Circular Locking Action: The "Cup and Blade" system eliminates the need for loose nuts, bolts, or wedges. A single hammer blow to the top cup secures the connection, making assembly up to 50% faster than traditional tube-and-fitting systems.

  • Unrivaled Durability (HDG Finish): Our Hot-Dip Galvanized finish provides a metallurgical bond that protects both the interior and exterior of the tubes. This "self-healing" coating resists scratches and salt-air corrosion, offering a service life of over 20 years with zero maintenance.

  • Extreme Load-Bearing Capacity: Built with high-tensile Q355 steel, the Cuplock node is one of the most rigid connections in scaffolding. It excels in heavy-duty shoring and high-rise applications where structural integrity is non-negotiable.

  • High Versatility & Compatibility: Its modular nature allows it to be configured for circular, curved, or complex angular structures. It is widely used for façade access, birdcage scaffolds, and heavy-duty support towers.

  • Site Safety & Loss Prevention: With no loose fittings to lose or drop, the site remains cleaner and safer. The captive cup mechanism ensures that once locked, the connection is vibration-proof and cannot be accidentally dislodged.

  • Long-Term Cost Efficiency: Although the initial investment for HDG is higher than painted alternatives, the total cost of ownership is significantly lower. You save on repeated maintenance, replacement costs, and labor-intensive assembly time.

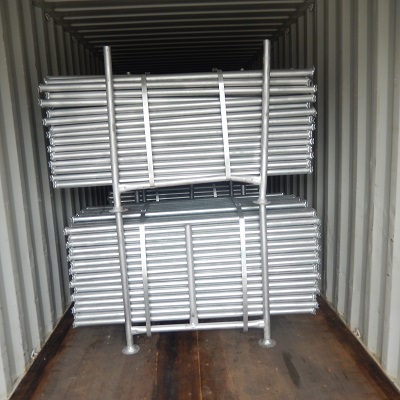

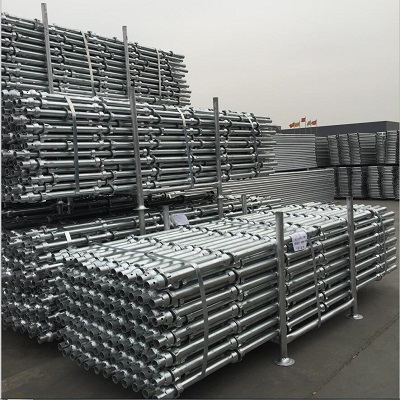

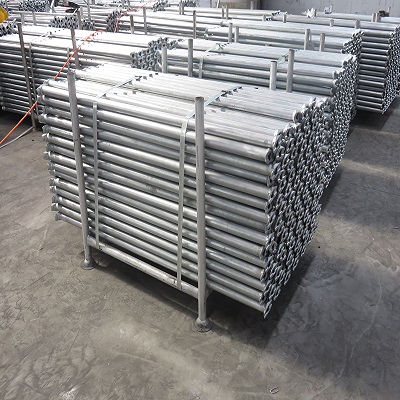

Packing

D5B9DC26350C9A56AA6AF4FC809D243C.jpg117F2C0B2DF9F9B8F667314F9BCC6DA3.JPG8CCFD9E1B543D5564676408323E5BD51.JPG

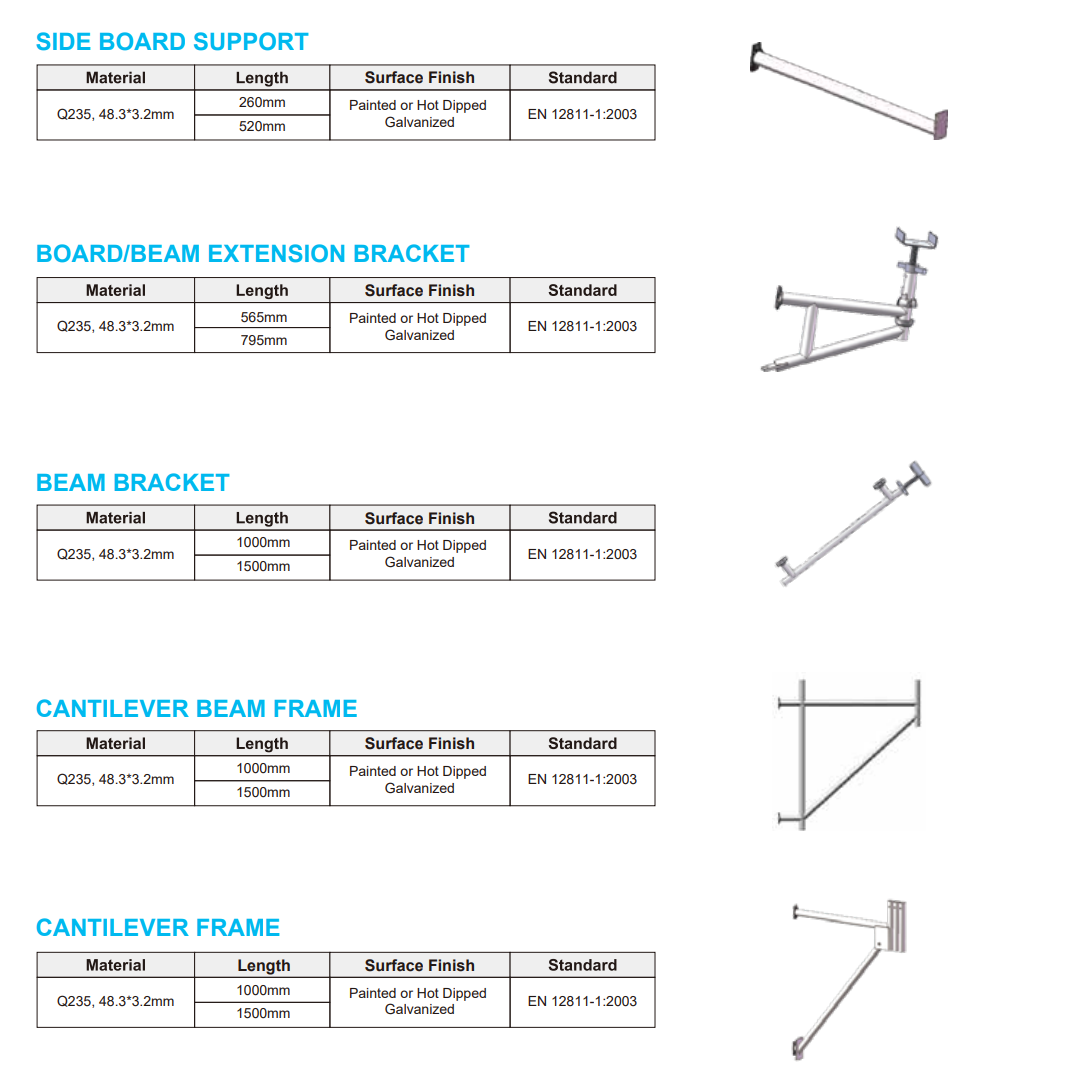

Accessories
